Despription

AMPBANK M192 is a cost‑effective plug‑in thermal imager designed for smartphones. It delivers enhanced 384×384 super‑resolution images via TISR technology, bringing close‑to‑higher‑resolution visual performance at entry‑level pricing. Compact at only 30g, it works with iOS, Android and Windows PC, turning your mobile phone or computer into a powerful thermal inspection tool for technicians, maintenance workers and DIY users.

Features

✅ TISR Super‑Resolution Technology

Native 192×192 IR resolution, upgraded to 384×384 super‑resolution output. Greatly improves image details, comparable to higher‑grade thermal cameras for daily diagnostic work.

✅ Wide Temperature Measuring Range & Reliable Accuracy

Broad temperature range: ‑20℃ ~ 450℃. Measurement accuracy: ±2°C or ±2% reading. Suitable for high‑temperature equipment check and low‑temperature heat‑loss inspection. Frame rate up to 25Hz for smooth real‑time thermal streaming.

✅ Rich Professional App Functions

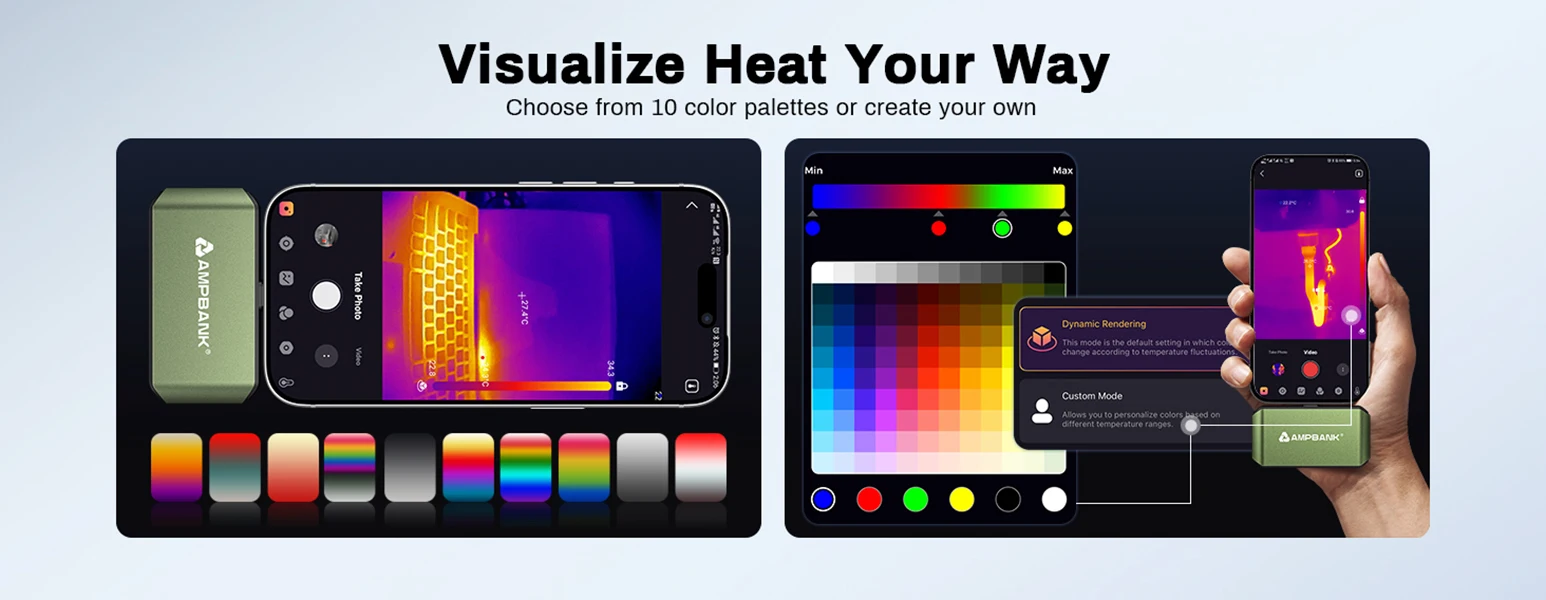

10 optional pseudo‑color palettes
Temperature high/low alarm function
Custom render adjustment
Generate inspection reports, export thermal data to Excel
Support PC software for further deep analysis

✅ Multi‑System Compatibility

Plug‑and‑play for iOS & Android smartphones; also supports connection with Windows PC for advanced data review and file management.

✅ Ultra‑portable Light‑weight Design

Only 30g weight; compact dimension: 70*14 *44mm. Equipped with 50cm extension cable, EVA storage case and cleaning cloth for field outdoor work.

✅ Flexible Detection Distance

Precise temperature measurement distance: 0.3‑15m; observation range up to 0.3‑25m. Focal length 1.35mm, FOV 50°(H) ×50°(V).

Wide Application Scenarios

🔌 Electrical Inspection: Detect overheated wires, connectors, circuit breakers, fuse faults, PCB board hot‑spot troubleshooting.

🏠 Building & Home Inspection: Roof moisture leakage detection, wall insulation loss, window & door heat‑leak check, HVAC / underfloor heating pipe diagnosis.

🚗 Auto Repair: Locate abnormal heat on engine components, cooling system and automotive circuits.

🏭 Facility Maintenance: Server room heat monitoring, photovoltaic panel inspection, public utility equipment thermal scan.

🔧 Other uses: Industrial PCB maintenance, animal observation, kitchen temperature check and more.
